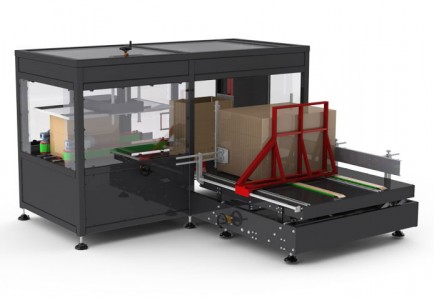

Case Forming / Closing Machines | BEM300

Medium and high speed RSC cases forming/closing machinery with positive case drive. Bottom case closing with self-adhesive tape or glue.

Go to Website

Features

Carton dimensions : Length: 350 - 780 mm Width: 250 - 580 mm Height: 370 - 650 mm Other dimensions on demand.

Standard technical features (others on demand)

Electric power: 400 V III+N+T 50 Hz
Installed power: 1 Kw
Air pressure: 6 bar
Bottom flaps sealing: adhesive tape (48 to 72 mm)
Size adjustment: manual
Output (depending on carton dimensions): up to 8 cartons/min
Controlled by PLC
Control panel with LCD colour touch screen

Carton Dimensions

Model BEM300

Length: 350 - 780 mm
Width: 250 - 580 mm
Height: 370 - 650 mm

It is not possible to combine all the maximum dimensions. Other dimensions on demand (it can have an extra cost).

Options

Stainless steel version
Bottom flaps sealing with hot-melt
Flaps opener for automatic filling
Automatic size adjustment
