Cream Injection Units

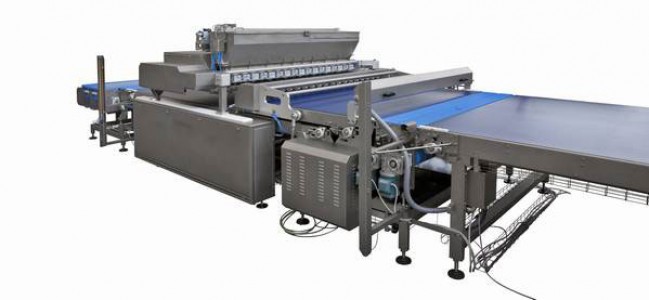

Line suitable for injection of poured or leavened products directly on conveyor belt. Volumetric injection unit driven by servomotors for a wide range of fillings and an high accuracy. Maximum handling and placement precision of products during injection phase. PLC and display (HMI) for production line control, data and recipes storing. Production line could be manufactured according to customer requirements and with following options:

  • different product configurations in the same line
  • individual product presence detecting device: no product – no injection
  • heated hopper with adjustable temperature
  • additional injection head for rapid change of filling flavor
  • codified sensor for injection plate recognition according to the selected recipe
  • rapid release system of injection plate for a quick product type change
  • possibility for double color injection
  • extractable head on a side trolley for cleaning operation
  • automatic feeding system of fillings into the hopper

PRODUCTS



______
Horizontally injected bread/brioche

______
Horizontally injected croissant

Features

Technical Characteristics

Is composed of an alignment device and if necessary, a products loading, can be automatic, by using a depanner (needles, vacuum or overturned depanner); the line includes a washing plate for the cleaning and a device for the finished products automatic unloading.

The filling head is driven by two brushless motors for movement precise, constant and modifiable by means of the display. A third brushless motor will determine the amount of filling. With just adding a divider into the hopper, it is possible to inject two different fillings (cream and chocolate) within the same product.

The horizontal filling line can be implemented with a heated hopper at a controlled temperature for the filling of hot creams; the same head can be extracted on a trolley for cleaning and can be injected in a condition of presence product (No product = No filling) .

Electronically control with variable functions on display screen allows for memorization of data and recipes and recall on the display.
